YMO Series Self-Centering Vise, Jaw Type Ⅲ
Features:
Lighter in weight than our YMZ series.
Ready for soft top jaws(not included).
Base of Jaw type lll is the same with Jaw type l.
Soft top jaws optional.
Please choose the model, then ask for quotation or add to cart.

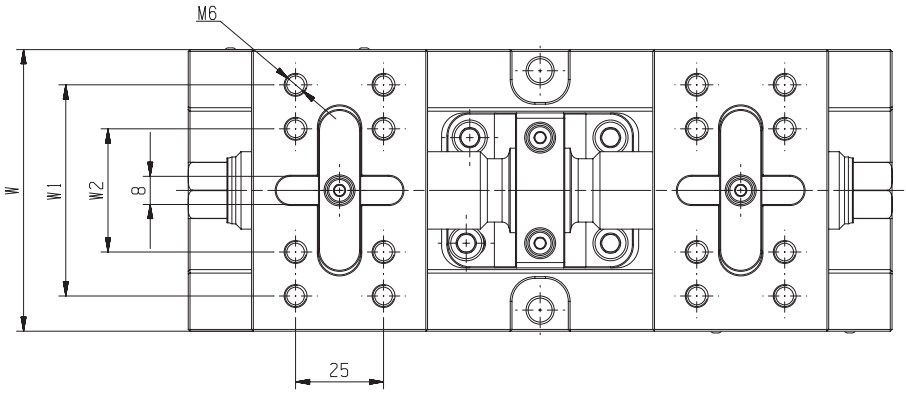

Technical Parameter
(mm)
| Order Code | Body Length | Body Width | Body Height | Overall Height | Jaw Width | W1 | W2 |
YMO08020003 | 200 | 80 | 55 | 70 | 80 | 55 | 35 |
YMO10020003 | 200 | 100 | 55 | 70 | 100 | 65 | 35 |
M012520003 | 200 | 125 | 55 | 70 | 125 | 90 | 55 |
YM008025003 | 250 | 80 | 55 | 70 | 80 | 55 | 35 |
YMO10025003 | 250 | 100 | 55 | 70 | 100 | 65 | 35 |
YMO12525003 | 250 | 125 | 55 | 70 | 125 | 90 | 55 |
